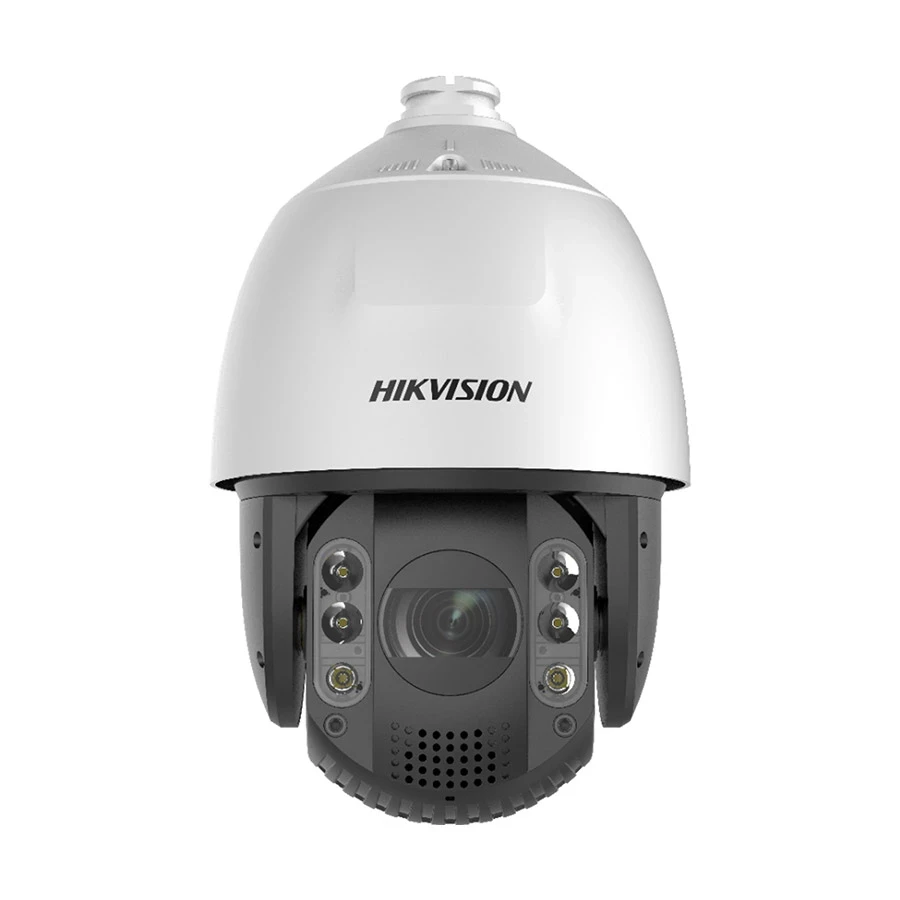

Hikvision DS-2DE7A432IW-AEB (5.9-188.8mm) (4.0MP) Dome IP Camera (Without Adapter & Wall Mount)

General:

Brand: Hikvision

Model: Hikvision DS-2DE7A432IW-AEB

Usage: Outdoor

Type: PTZ IP Camera

Camera:

Number of Camera: 1

Camera Type: Pan & Tilt

Mega Pixels (MP): 4.0

Max. Camera Resolution: 2560 x 1440

Secondary Camera Type: Not Applicable

Secondary Camera Mega Pixel (MP): Not Applicable

Secondary Camera Max Resolution; Not Applicable

Sensor Type.: 1/1.8 Inch Progressive Scan CMOS

Resolution: ,2560 x 1440

Shutter Speed; 1/1 s to 1/30000 s

Slow Shutter: Yes

Day & Night; IR cut filter

Night Vision; Yes

Night Vision Mode; Black and White

S/N Ratio; 52 dB

Lens:

Number of Lens: Single Lens (Primary)

Lens: 5.9-188.8mm

Lens Adjustment Range: Pan: 360 degree, Tilt: -15 to 90 degree (auto flip)

Focal Length: 5.9-188.8mm

PTZ: Yes

Zoom: 32x optical, 16x digital

Viewing Angle.; 57.4 to 3 degree (D), 50.8 to 2.6 degree (H), 29.4 to 1.5 degree (V)

Image:

Dual-Stream: Yes

Triple-Stream: Yes

Noise Reduction; Yes

Digital Noise Reduction (DNR): 3D DNR

Wide Dynamic Range (WDR): 120 dB

Network & Connectivity:

Sim Supported: No

Sim Network Type; Not Applicable

Interface(s); 1 x RJ-45 10M/100M self-adaptive Ethernet port, 1 x Built-in memory card slot, 2 x Alarm inputs, 1 x Alarm output, 1 x Audio input

Wi-Fi; No

Security:

Security: Password protection, complicated password, HTTPS encryption, 802.1x authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)

Password Protection: Yes

Watermark: Yes

Motion Detection: Yes

Human Detection: Yes

Face Detection; Yes

Lightning Protection: Yes

Surge Protection: Yes

Voltage Transient Protection: Yes

Dust Protection: Yes

Water Protection; Yes

Simultaneous Live View; Up to 20 channels

Technical Info:

Scanning System: Progressive

Video Type; Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG.

Mic & Speaker; Both Mic and Speaker

Audio Communication: Two-way audio

Ingress Protection Grade: IP66

Working Distance; Unmentioned

Protocols; IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

Physical Description:

Form-Factor: Dome

Smart Alarm: Motion detection, video tampering alarm, exception, alarm input and output

Card Slot; Yes

Storage Type: MicroSD, NAS

Storage Supported: 256GB

Body Material; ADC12

Color: Black & White

Dimensions: 220 x 363.3mm

Weight (gm): 5000 gm

Power:

Power: 24 VAC

Battery Capacity: Not Applicable

Battery Backup; No

Battery Backup Time: Not Applicable

Operating Temperature; -30 to 65 degree C

Operating Humidity; humidity 90% or less (non-condensing)

Warranty:

Warranty Details: 2 Year (Without Adapter)

Additional Info:

Others: Zoom Speed: Approximately 4.8 s, Aperture: Maximum f/1.5, Focus: Auto, semi-auto, manual, rapid focus, Movement Range (Tilt): -15 to 90 degree (auto flip), Proportional Pan: Yes, Presets: 300, Patrol Scan: 8 patrols, up to 32 presets for each patrol, Pattern Scan: 4 pattern scans, Power-off Memory: Yes, Park Action: Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan, 3D Positioning: Yes, PTZ Status Display: Yes, Preset Freezing: Yes, Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output, Video Bit Rate: 32 kbps to 16384 kbps, Scalable Video Coding (SVC): H.264 and H.265 encoding, Region of Interest (ROI): 8 fixed regions for each stream, Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM, Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC), Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz, Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR), API: Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, User/Host Up to 32 users, 3 user levels: administrator, operator, and user, Client: iVMS-4200, HikCentral Pro, Hik-Connect, Web Browser: IE11, Chrome 57+, Firefox 52+, Safari 11+, Day/Night Switch: Day, Night, Auto, Schedule, Image Enhancement: BLC, HLC, 3D DNR, Wide Dynamic Range (WDR): 120 dB, Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or Web browser, Privacy Mask: 24 programmable polygon privacy masks, mask color, or mosaic configurable, Built-in Speaker 1 built-in speaker with effective distance reaching maximum 98 ft (30 m).

Specialty: High Quality Imaging with 4 MP Resolution, Excellent Low-Light Performance with Powered-by-DarkFighter Technology, Audio Visual Alarm: Event Triggered White Flashing Light and Audible Warning, 32x Optical Zoom, 16x Digital Zoom Provide Close Up Views Over Expansive Areas, Expansive Night View with up to 660 ft (200 m) IR Distance, Human and Vehicle Targets Classification Based on Deep Learning, Up to Five Faces Captured at Same Time, Environment Noise Filtering.

Country Of Origin: China

Made in/ Assemble: China
