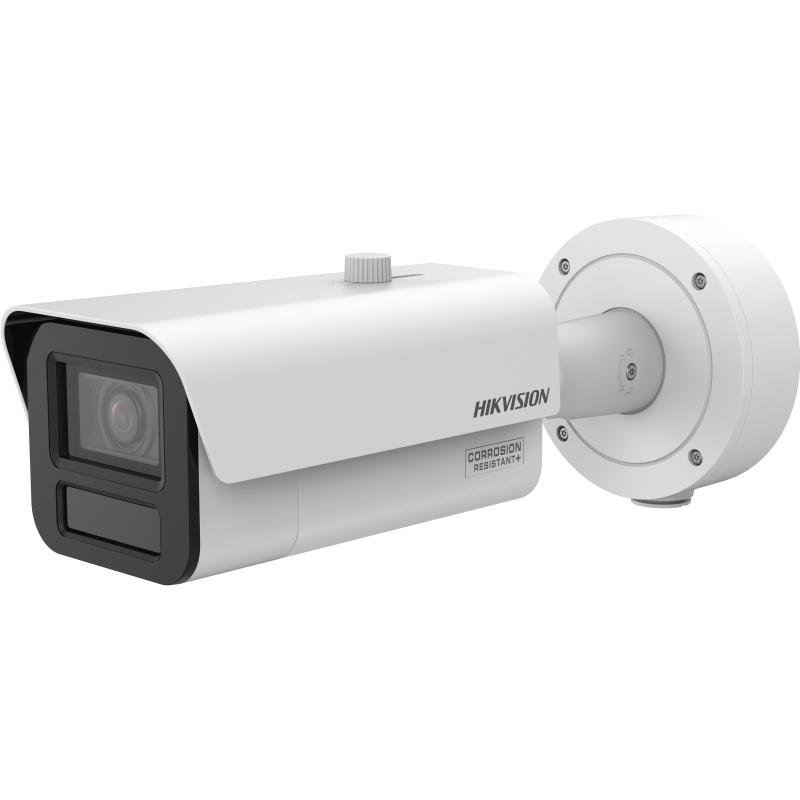

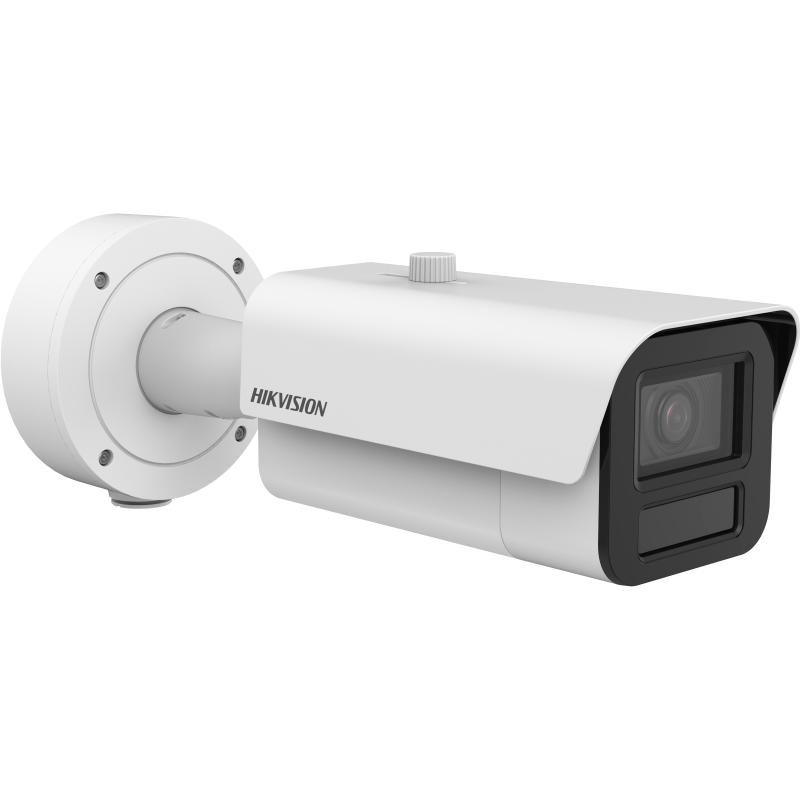

16MP DeepinView Moto Varifocal Bullet Camera

DORI:

Wide:

2.8 to 12 mm: D (Detect): 113.5 m, O (Observe): 45.1 m, R (Recognize): 22.7 m, I (Identify): 11.4 m

8 to 32 mm: D (Detect): 281.3 m, O (Observe): 111.6 m, R (Recognize): 56.3 m, I (Identify): 28.1 m

Tele:

2.8 to 12 mm: D (Detect): 240 m, O (Observe): 95.2 m, R (Recognize): 48.0 m, I (Identify): 24.0 m

8 to 32 mm: D (Detect): 748.4 m, O (Observe): 297.0 m, R (Recognize): 149.7 m, I (Identify): 74.8 m

The DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard.

Illuminator:

Supplement Light Type:  IR

Smart Supplement Light:  Yes

IR Wavelength:  850 nm

HEOP:

Open Resources:  Memory: 150 MB,

                               Smart RAM: 2200 MB,

                               eMMC: 1288 MB

Computing Power:  5 TOPS

Open Capability:  HEOP 2.0 OpendevSDK

Programming Language:  C,C++

Video:

Video Bit Rate:  32 Kbps to 32 Mbps

H.264 Type:  Baseline Profile,Main Profile,High Profile

H.265 Type:  Main Profile

Bit Rate Control:  CBR,VBR

Scalable Video Coding (SVC):  H.264 and H.265 encoding

Region of Interest (ROI):  4 fixed regions for each stream

Target Cropping: Yes

e-PTZ:   Support Patrol and Auto Tracking settings

Audio

Audio Type: Mono sound

Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate:  64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate:  8 kHz/16 kHz/32 kHz/48 kHz

Environment Noise Filtering:  Yes

Network:

Protocols:   TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, SRTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, WebSocket, WebSockets，MQTT/MQTTS，Support X.509 authentication，Support802.1xEAP-GTC and MSCHAP V2；802.1xEAP 1.2 supports a maximum 32-bit key.

Simultaneous Live View:  Up to 20 channels

API: ISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M)

User/Host:   Up to 32 users

                   3 user levels: administrator, operator, and user

Security:   Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256

Smooth Streaming: Yes

Network Storage:

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Web Browser:

Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image:

Image Parameters Switch: Yes

Day/Night Switch: Day,Night,Auto,Schedule,Alarm Trigger

Wide Dynamic Range (WDR): 120 dB

Image Enhancement: BLC,HLC,3D DNR,Distortion Correction,Defog

SNR: ≥ 52 dB

Interface:

Video Output: 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)

Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

Built-in Microphone: Yes,1 built-in microphone
