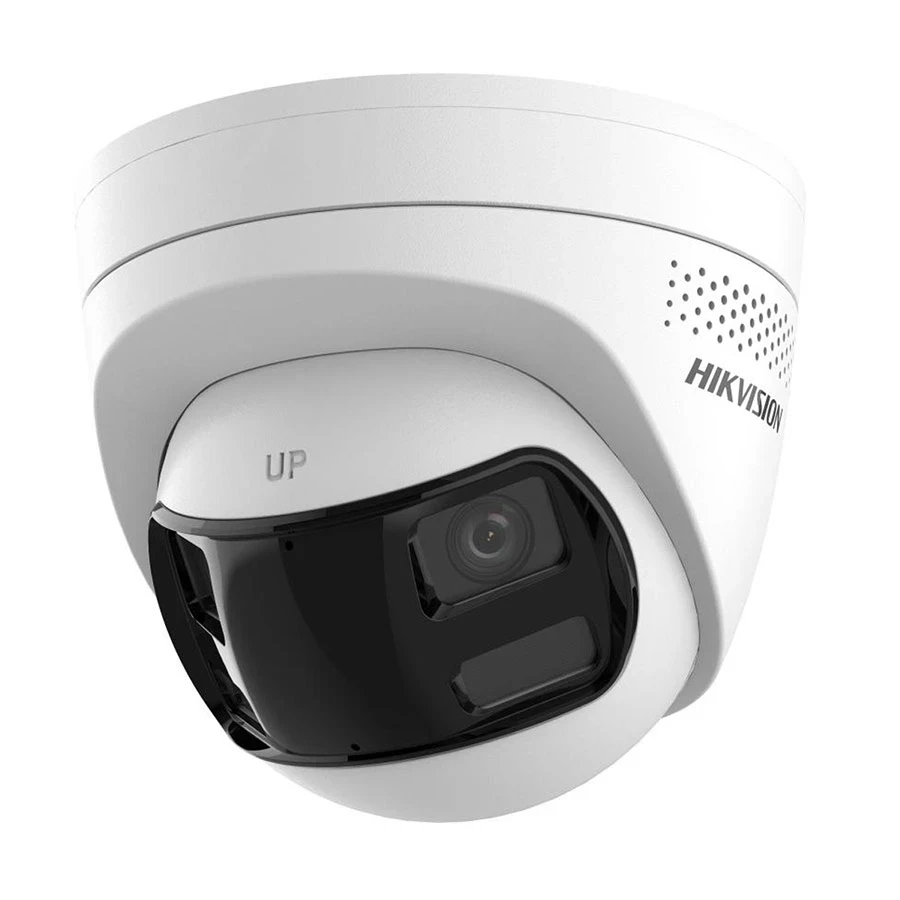

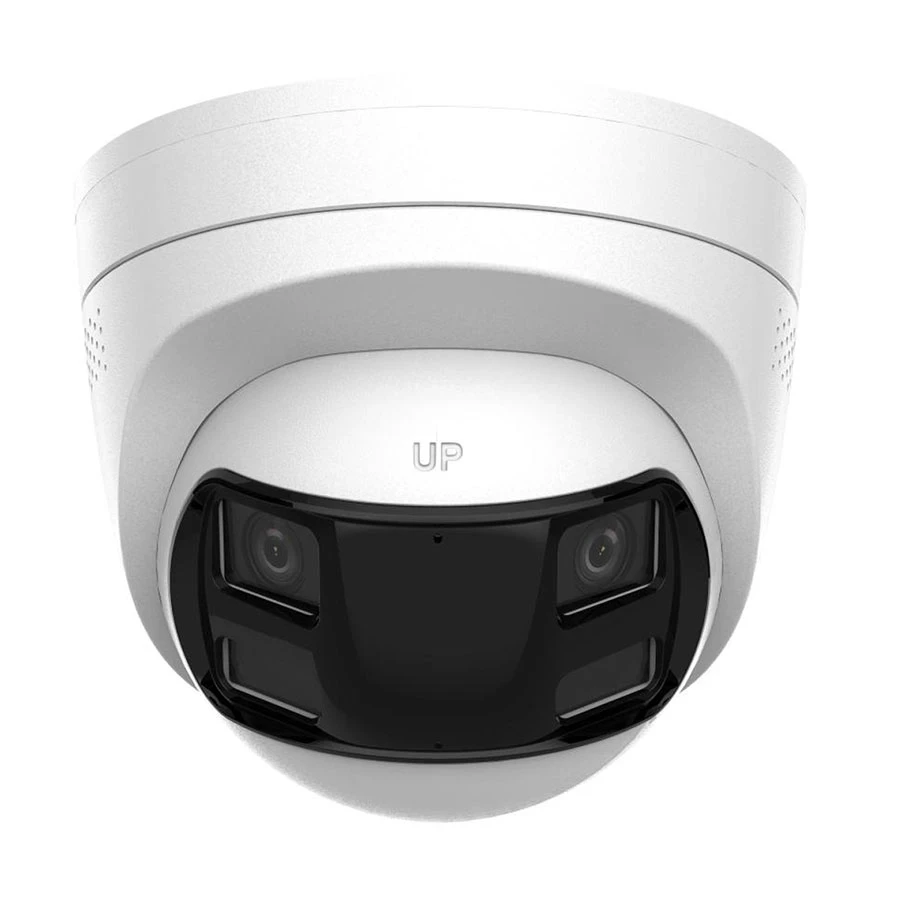

Hikvision DS-2CD1383G2P-LIUF/SL (2mm) (8.0MP) Smart Hybrid Light Fixed Turret IP Camera

General:

Brand: Hikvision

Model: Hikvision DS-2CD1383G2P-LIUF/SL

Usage: Indoor & Outdoor

Type: Turret IP Camera

Camera:

Number of Camera: 2

Camera Type: Fixed

Mega Pixels (MP): 8.0

Max. Camera Resolution: 4256 x 1888

Sensor Type.: 1/2.4 Inch Progressive Scan CMOS

Resolution: 4256 x 1888

Shutter Speed: 1s to 1/100000s

Day & Night: IR cut filter

Night Vision: Yes

Night Vision Mode: Black and White

S/N Ratio: ->52 dB

Lens:

Number of Lens: Dual Lens (Primary)

Lens: 2.0mm

Lens Mount: M12

PTZ: No

Viewing Angle.: 180 Degree (H), 77 Degree (V)

Image:

General Function: Heartbeat,anti-banding,password protection,password reset via email

Dual-Stream: Yes

Noise Reduction: Yes

Wide Dynamic Range (WDR): 120 dB

Network & Connectivity:

Sim Supported: No

Interface(s): 1 RJ45 10 M/100 M self-adaptive Ethernet port

Wi-Fi: No

Security:

Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Password Protection: Yes

Watermark: Yes

Motion Detection: Yes

Human Detection: Yes

Dust Protection: Yes

Water Protection: Yes

Weather Proof: Yes

Simultaneous Live View: Up to 6 channels

Technical Info:

Scanning System: Progressive

Video Type: 50 Hz: 20 fps (4256 x 1888), 60 Hz: 20 fps (4256 x 1888) (Main Stream), 50 Hz: 20 fps (1200 x 536, 960 x 432), 60 Hz: 20 fps (1200 x 536, 960 x 432) (Sub-Stream)

Wavelength: 850 nm

Mic & Speaker: Both Mic and Speaker

Audio Communication: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC

Ingress Protection Grade: IP67

Working Distance: Unmentioned

Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS

Physical Description:

Form-Factor: Turret

Card Slot: Yes

Storage Type: FTP, MicroSD, NAS

Body Material: Metal + Plastic

Color: Black & White

Dimensions: 130.1 x 109.1mm

Weight (gm): 586 gm

Power:

Power Supply: 12 VDC +- 25%, 0.83 A

Operating Temperature: -30 Degree C - 60 Degree C

Storing/Storage Temperature: -30 Degree C - 60 Degree C

Operating Humidity: 95% or less (non-condensing)

Storing/Storage Humidity: 95% or less (non-condensing)

Warranty:

Warranty Details: 2 Year (Without Adapter)

Additional Info:

Others: Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light, Lens Type: Fixed focal lens, 2 mm, Aperture: F1.6, DORI: 2 mm, D: 50 m, O: 20 m, R: 10 m, I: 5 m, Supplement Light Type: IR,White Light, Supplement Light Range: Up to 30 m, Smart Supplement Light: Yes, Video Bit Rate: 32 Kbps to 16 Mbps, H.264 Type: Baseline Profile,Main Profile,High Profile, H.265 Type: Main Profile, Bit Rate Control: CBR,VBR, Region of Interest (ROI): 1 fixed region for main stream, Scalable Video Coding (SVC): H.264 and H.265 encoding, Audio Type: Mono sound, Audio Sampling Rate: 8 kHz/16 kHz, Environment Noise Filtering: Yes, Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC), API: ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK, User/Host: Up to 32 users, 3 user levels: administrator, operator, and user, Clien: iVMS-4200,Hik-Connect, Web Browser: Plug-in required live view: IE 11, Local service: Chrome 80+, Firefox 80+, Edge 89+, Day/Night Switch: Day,Night,Auto,Schedule, Image Enhancement: BLC,HLC,3D DNR, Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser, Privacy Mask: 4 programmable polygon privacy masks, On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB, Built-in Microphone: Yes,1 built-in microphone, Built-in Speaker: Yes, 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB, Reset Key: Yes, Flashing Light: /SRB model: Red and Blue Light, /SL model: White Light, EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015, Safety: CB: IEC 62368-1: 2014+A11,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Specialty: High quality imaging with 8 MP resolution, Support Person and Vehicle Detection, Smart Hybrid Light: advanced technology with long range, Efficient H.265+ compression technology, Support on-board storage up to 512 GB (SD card slot), Provide real-time security via built-in two-way audio, Water and dust resistant (IP67), 180 Degree Field of view, Active strobe light and audio alarm to warn intruders off

Country Of Origin: China

Made in/ Assemble: China
